船来啦~船来啦~垃圾佬们纷纷涌到窗前，盼望着大船靠岸的那一刻😢。

LGA3647(C621)大船靠岸可能只是时间问题。在能用上便宜大碗的C621、EYPC 7002/7003之前，还是先看看近处已靠岸的C612吧家人们()。

然而，DDR4 RECC也涨飞了，面对咫尺的众多正规军双路C612主板，比如浪潮5212M4、超微X10DRi、联想RD450X……，只能望洋兴叹。

还好25年初一口气买了8根16GB DDR3 RECC，按理来讲，所有正规军C612，包括御三家（华硕、微星、技嘉，这三家的正规军质量没得说，但现在能买到的很多都是二修的了，个人卖家挺少，且远贵于大船靠岸后的服务器厂商的主板）以及服务器厂商的主板均使用的是DDR4服务器条子，但是在众多正规军双路主板中有一块妖板：英业达代工的X99，支持DDR3内存。
它的前身是作为硬盘服务器来的，所以PCIE插槽少得可怜，且安装显卡极其容易和CPU散热器撞上，

B600GG1
之前买了同款的，不过被我玩坏了，上电反复重启，这种疑难杂症也不太好修，小黄鱼上还剩一块，190R价格也还可以，但是安装显卡的话得用延长线，考虑到这是EEB板型比E-ATX更大，对机箱也很挑，就不打算买了，真是白瞎了这么多内存槽。

代替方案是一块精粤的双路寨板，寨板就寨板吧，只有供电、散热能顶住就行，不过只有八根槽，技术客服表示全是主通道，一共八通道 ，等会上机测试一下。

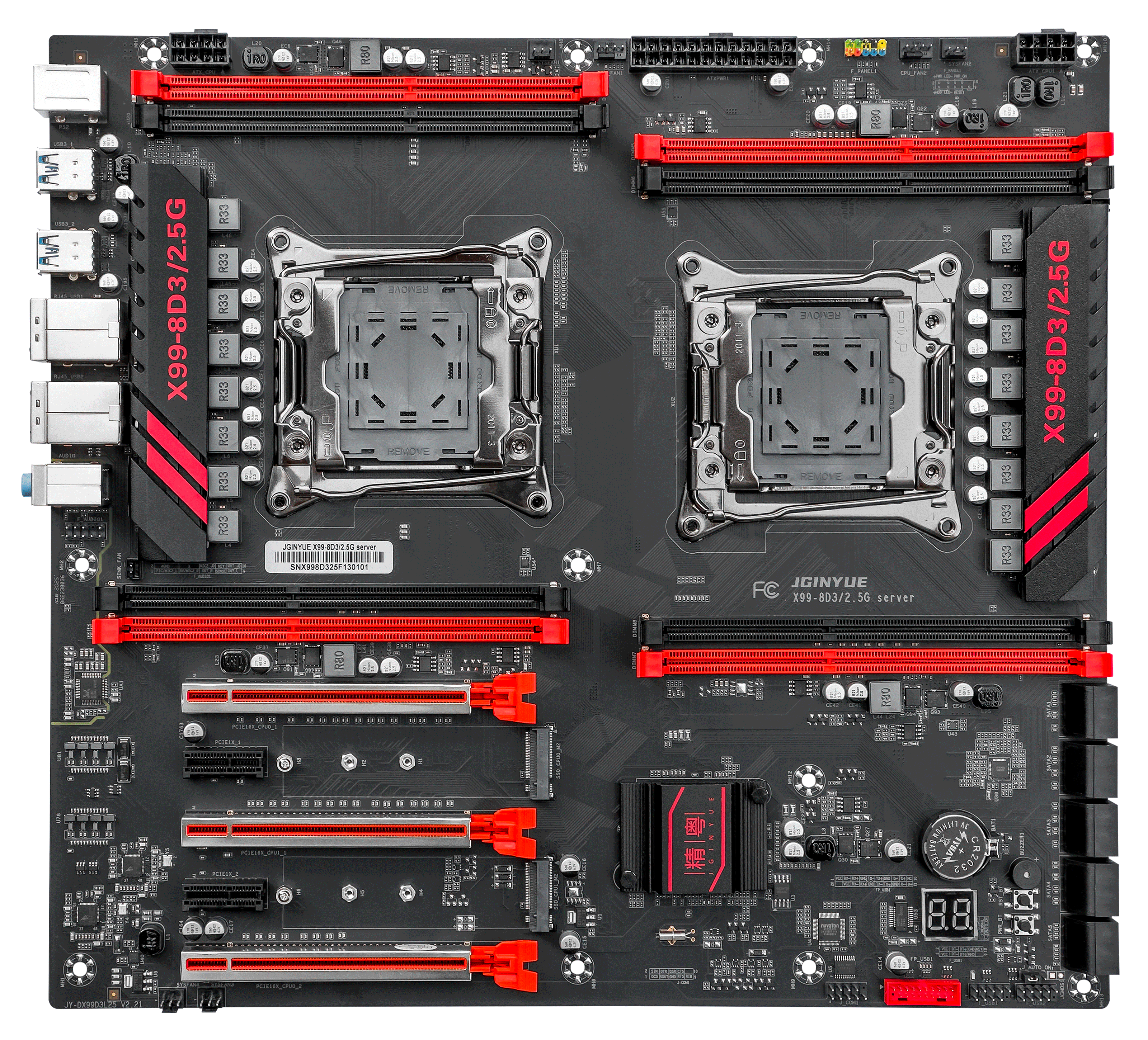

精粤X99-8D3/2.5G双路大板V2.21版本
很遗憾，由于买的条子是不同批次的，寨板的兼容性也一般，所以最终只能插成七条不对称或者六条对称的通道，右下角的黑槽会卡B7。

后续V100也到货了，原生接口是SXM2，使用转接板改为PCIE接口。可能是转接的缘故，进入Linux会遇到LaneErrStat: LaneErr at lane: 13报错，需要加入内核启动参数pcie_aspm=off才能成功进入Linux，Windows则不用管。

Rocky 9 使用 BLS 启动条目，最适合用 grubby，不推荐手工反复编辑 GRUB 文件，所以进入系统后，永久添加到所有已安装内核：

1
sudo grubby --update-kernel=ALL --args="pcie_aspm=off"

BIOS里已关闭安全启动，接下来安装闭源驱动的依赖：

1
sudo dnf install -y dnf-plugins-core
1
sudo dnf config-manager --set-enabled crb
1
sudo dnf install -y epel-release
1
2
3
4
5
6
sudo dnf install -y \
    kernel-devel-matched \
    kernel-headers \
    gcc \
    make \
    dkms

禁用开源驱动：

1
sudo tee /etc/modprobe.d/blacklist-nouveau.conf >/dev/null <<'EOF' blacklist nouveau options nouveau modeset=0 EOF
1
sudo dracut --force

添加官方源（目前Rocky9有源，Rocky10似乎没源）：

1
sudo dnf config-manager --add-repo \ https://developer.download.nvidia.com/compute/cuda/repos/rhel9/x86_64/cuda-rhel9.repo
1
sudo dnf clean expire-cache

选择 R580 闭源 DKMS 分支：

1
2
3
sudo dnf module reset -y nvidia-driver
sudo dnf module enable -y nvidia-driver:580-dkms
sudo dnf install -y cuda-drivers

cuda-drivers只是驱动原包，不是CUDA-tookit。

接下来重启后应当就能正常使用nvidia-smi命令：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
(storm) [storm@192 ~]$ nvidia-smi
Sat Jul 18 14:43:31 2026
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 580.173.02             Driver Version: 580.173.02     CUDA Version: 13.0     |
+-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  Tesla V100-SXM2-16GB           Off |   00000000:04:00.0 Off |                    0 |
| N/A   34C    P0             27W /  300W |       0MiB /  16384MiB |      0%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

+-----------------------------------------------------------------------------------------+
| Processes:                                                                              |
|  GPU   GI   CI              PID   Type   Process name                        GPU Memory |
|        ID   ID                                                               Usage      |
|=========================================================================================|
|  No running processes found                                                             |
+-----------------------------------------------------------------------------------------+

查看发现没有ECC报错：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(storm) [storm@192 ~]$ mkdir -p ~/v100-check
(storm) [storm@192 ~]$ nvidia-smi -q > ~/v100-check/00-before-nvidia-smi-q.txt
(storm) [storm@192 ~]$ nvidia-smi -q -d ECC,PAGE_RETIREMENT,MEMORY,PCI,POWER,TEMPERATURE \
    > ~/v100-check/01-before-health.txt
(storm) [storm@192 ~]$ nvidia-smi -q -d ECC,PAGE_RETIREMENT

==============NVSMI LOG==============

Timestamp                                              : Sat Jul 18 14:44:52 2026
Driver Version                                         : 580.173.02
CUDA Version                                           : 13.0

Attached GPUs                                          : 1
GPU 00000000:04:00.0
    ECC Mode
        Current                                        : Enabled
        Pending                                        : Enabled
    ECC Errors
        Volatile
            Single Bit
                Device Memory                          : 0
                Register File                          : 0
                L1 Cache                               : 0
                L2 Cache                               : 0
                Texture Memory                         : N/A
                Texture Shared                         : N/A
                CBU                                    : N/A
                Total                                  : 0
            Double Bit
                Device Memory                          : 0
                Register File                          : 0
                L1 Cache                               : 0
                L2 Cache                               : 0
                Texture Memory                         : N/A
                Texture Shared                         : N/A
                CBU                                    : 0
                Total                                  : 0
        Aggregate
            Single Bit
                Device Memory                          : 0
                Register File                          : 0
                L1 Cache                               : 0
                L2 Cache                               : 0
                Texture Memory                         : N/A
                Texture Shared                         : N/A
                CBU                                    : N/A
                Total                                  : 0
            Double Bit
                Device Memory                          : 0
                Register File                          : 0
                L1 Cache                               : 0
                L2 Cache                               : 0
                Texture Memory                         : N/A
                Texture Shared                         : N/A
                CBU                                    : 0
                Total                                  : 0
    Retired Pages
        Single Bit ECC                                 : 0
        Double Bit ECC                                 : 0
        Pending Page Blacklist                         : No

接下来安装NVIDIA 官方的数据中心 GPU 健康检查、诊断和压力测试工具DCGM。
NVIDIA 官方专门警告：R580 虽然能驱动 Maxwell/Pascal/Volta，但这些架构不受 CUDA Toolkit 13 支持，因此 DCGM 应使用 CUDA 12 包。

1
2
3
sudo dnf install -y \
    --setopt=install_weak_deps=True \
    datacenter-gpu-manager-4-cuda12

设置开机启动：

1
sudo systemctl enable --now nvidia-dcgm

接下来可以开始测试卡了，先快速测试：

1
2
3
4
5
6
7
8
9
10
11
12
13
(storm) [storm@192 ~]$ sudo dcgmi diag -r 1
Successfully ran diagnostic for group.
+---------------------------+------------------------------------------------+
| Diagnostic                | Result                                         |
+===========================+================================================+
|-----  Metadata  ----------+------------------------------------------------|
| DCGM Version              | 4.6.0                                          |
| Driver Version Detected   | 580.173.02                                     |
| GPU Device IDs Detected   | 1db1                                           |
|-----  Deployment  --------+------------------------------------------------|
| software                  | Pass                                           |
|                           | GPU0: Pass                                     |
+---------------------------+------------------------------------------------+

接着进行综合测试，包含持续矩阵运算、功耗负载等测试，适合初步验证稳定性。

1
sudo dcgmi diag -r 3

300W满载，风扇声音明显，58°C轻松压住，顺利通过测试。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
(storm) [storm@192 ~]$ sudo dcgmi diag -r 3
Successfully ran diagnostic for group.
+---------------------------+------------------------------------------------+
| Diagnostic                | Result                                         |
+===========================+================================================+
|-----  Metadata  ----------+------------------------------------------------|
| DCGM Version              | 4.6.0                                          |
| Driver Version Detected   | 580.173.02                                     |
| GPU Device IDs Detected   | 1db1                                           |
|-----  Deployment  --------+------------------------------------------------|
| software                  | Pass                                           |
|                           | GPU0: Pass                                     |
+-----  Hardware  ----------+------------------------------------------------+
| memory                    | Pass                                           |
|                           | GPU0: Pass                                     |
| diagnostic                | Pass                                           |
|                           | GPU0: Pass                                     |
| nvbandwidth               | Skip                                           |
|                           | GPU0: Skip                                     |
+-----  Integration  -------+------------------------------------------------+
| pcie                      | Pass                                           |
|                           | GPU0: Pass                                     |
+-----  Stress  ------------+------------------------------------------------+
| memory_bandwidth          | Pass                                           |
|                           | GPU0: Pass                                     |
| targeted_stress           | Pass                                           |
|                           | GPU0: Pass                                     |
| targeted_power            | Pass                                           |
|                           | GPU0: Pass                                     |
+---------------------------+------------------------------------------------+

测试PCIe：

1
sudo dcgmi diag -r pcie --iterations 3

测试显存：

1
2
sudo dcgmi diag -r memory \
    -p "memory.is_allowed=True"

测试PCIe/显存带宽：

1
sudo dcgmi diag -r nvbandwidth

最后进行level-4测试，这个测试耗时稍长：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
(storm) [storm@192 ~]$ sudo dcgmi diag -r 4
Successfully ran diagnostic for group.
+---------------------------+------------------------------------------------+
| Diagnostic                | Result                                         |
+===========================+================================================+
|-----  Metadata  ----------+------------------------------------------------|
| DCGM Version              | 4.6.0                                          |
| Driver Version Detected   | 580.173.02                                     |
| GPU Device IDs Detected   | 1db1                                           |
|-----  Deployment  --------+------------------------------------------------|
| software                  | Pass                                           |
|                           | GPU0: Pass                                     |
+-----  Hardware  ----------+------------------------------------------------+
| memory                    | Pass                                           |
|                           | GPU0: Pass                                     |
| diagnostic                | Pass                                           |
|                           | GPU0: Pass                                     |
| nvbandwidth               | Skip                                           |
|                           | GPU0: Skip                                     |
| pulse_test                | Skip                                           |
|                           | GPU0: Skip                                     |
+-----  Integration  -------+------------------------------------------------+
| pcie                      | Pass                                           |
|                           | GPU0: Pass                                     |
+-----  Stress  ------------+------------------------------------------------+
| memtest                   | Pass                                           |
|                           | GPU0: Pass                                     |
| memory_bandwidth          | Pass                                           |
|                           | GPU0: Pass                                     |
| targeted_stress           | Pass                                           |
|                           | GPU0: Pass                                     |
| targeted_power            | Pass                                           |
|                           | GPU0: Pass                                     |
+---------------------------+------------------------------------------------+

最终安全下车，测试通过

接下来编译GPU版本的VASP，需要安装 NVIDIA HPC SDK，安装官网的说明，从源安装就行，安装完成之后能顺利找到相应的编译器，然后使用module进行管理：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
(storm) [storm@192 ~]$ ls /opt/nvidia/hpc_sdk/modulefiles/
nvhpc               nvhpc-hpcx              nvhpc-hpcx-cuda12           nvhpc-hpcx-cuda12-openmpi5  nvhpc-hpcx-cuda13-openmpi4  nvhpc-nompi
nvhpc-byo-compiler  nvhpc-hpcx-2.20-cuda12  nvhpc-hpcx-cuda12-openmpi4  nvhpc-hpcx-cuda13           nvhpc-hpcx-cuda13-openmpi5
(storm) [storm@192 ~]$ export MODULEPATH=/opt/nvidia/hpc_sdk/modulefiles:$MODULEPATH
(storm) [storm@192 ~]$ module avail
------------------------------------------------------ /opt/nvidia/hpc_sdk/modulefiles -------------------------------------------------------
nvhpc-byo-compiler/26.5          nvhpc-hpcx-cuda12-openmpi5/26.5  nvhpc-hpcx-cuda13-openmpi5/26.5  nvhpc-nompi/26.5
nvhpc-hpcx-2.20-cuda12/26.5      nvhpc-hpcx-cuda12/26.5           nvhpc-hpcx-cuda13/26.5           nvhpc/26.5
nvhpc-hpcx-cuda12-openmpi4/26.5  nvhpc-hpcx-cuda13-openmpi4/26.5  nvhpc-hpcx/26.5

---------------------------------------------------------- /home/storm/modulefiles -----------------------------------------------------------
cp2k/2026.1  orca/6.1.1  vasp/6.6.0

------------------------------------------------------- /usr/share/Modules/modulefiles -------------------------------------------------------
dot  module-git  module-info  modules  null  use.own

Key:
modulepath
(storm) [storm@192 ~]$ module load nvhpc
(storm) [storm@192 ~]$ which nvfortran nvc nvc++ nvcc mpif90 mpirun
/opt/nvidia/hpc_sdk/Linux_x86_64/26.5/compilers/bin/nvfortran
/opt/nvidia/hpc_sdk/Linux_x86_64/26.5/compilers/bin/nvc
/opt/nvidia/hpc_sdk/Linux_x86_64/26.5/compilers/bin/nvc++
/opt/nvidia/hpc_sdk/Linux_x86_64/26.5/compilers/bin/nvcc
/opt/nvidia/hpc_sdk/Linux_x86_64/26.5/comm_libs/mpi/bin/mpif90
/opt/nvidia/hpc_sdk/Linux_x86_64/26.5/comm_libs/mpi/bin/mpirun
(storm) [storm@192 ~]$ nvfortran --version

nvfortran 26.5-0 64-bit target on x86-64 Linux -tp haswell
NVIDIA Compilers and Tools
Copyright (c) 2026, NVIDIA CORPORATION & AFFILIATES.  All rights reserved.
(storm) [storm@192 ~]$ nvcc --version
nvcc: NVIDIA (R) Cuda compiler driver
Copyright (c) 2005-2026 NVIDIA Corporation
Built on Thu_Mar_19_11:12:51_PM_PDT_2026
Cuda compilation tools, release 13.2, V13.2.78
Build cuda_13.2.r13.2/compiler.37668154_0
(storm) [storm@192 ~]$ nvaccelinfo

CUDA Driver Version:           13000
NVRM version:                  NVIDIA UNIX x86_64 Kernel Module  580.173.02  Tue Jun 23 08:38:17 UTC 2026

Device Number:                 0
Device Name:                   Tesla V100-SXM2-16GB
Device Revision Number:        7.0
Global Memory Size:            16928342016
Number of Multiprocessors:     80
Concurrent Copy and Execution: Yes
Total Constant Memory:         65536
Total Shared Memory per Block: 49152
Registers per Block:           65536
Warp Size:                     32
Maximum Threads per Block:     1024
Maximum Block Dimensions:      1024, 1024, 64
Maximum Grid Dimensions:       2147483647 x 65535 x 65535
Maximum Memory Pitch:          2147483647B
Texture Alignment:             512B
Clock Rate:                    1530 MHz
Execution Timeout:             No
Integrated Device:             No
Can Map Host Memory:           Yes
Compute Mode:                  default
Concurrent Kernels:            Yes
ECC Enabled:                   Yes
Memory Clock Rate:             877 MHz
Memory Bus Width:              4096 bits
L2 Cache Size:                 6291456 bytes
Max Threads Per SMP:           2048
Async Engines:                 2
Unified Addressing:            Yes
Managed Memory:                Yes
Concurrent Managed Memory:     Yes
Preemption Supported:          Yes
Cooperative Launch:            Yes
Unified Memory:                No
Memory Models Flags:           -gpu=mem:separate, -gpu=mem:managed
Default Target:                cc70

使用makefile.include.nvhpc_omp_acc模板，只为V100编译就行，模板内容修改为：

1
GPU = -gpu=cc70,cuda12.9

然后安装Rocky的FFTW开发包：

1
sudo dnf install -y fftw-devel

确认文件：

1
2
3
4
5
(storm) [storm@192 vasp.6.6.0]$ rpm -ql fftw-devel |
grep -E 'fftw3\.h|libfftw3(_omp)?\.so'
/usr/include/fftw3.h
/usr/lib64/libfftw3.so
/usr/lib64/libfftw3_omp.so

相应的修改模板中库的位置：

1
2
LLIBS += -L/usr/lib64 -lfftw3 -lfftw3_omp
INCS  += -I/usr/include

把原来的：

1
2
3
FFTW_ROOT  ?= /path/to/your/fftw/installation
LLIBS      += -L$(FFTW_ROOT)/lib -lfftw3 -lfftw3_omp
INCS       += -I$(FFTW_ROOT)/include

注释掉，避免错误指向 /usr/lib。
再次检查MPI包装器，确认是NVHPC/HPC-X的环境而非ifx、ifort、gfortran等环境后就可以开始编译：

1
make DEPS=1 -j32 all

一次性编译通过，接下来使用make test命令进行测试，使用1个MPI进程，8个OpenMP线程：

1
2
3
4
5
Total test time: 126 min, 38 sec
==================================================================
SUCCESS: ALL SELECTED TESTS PASSED
==================================================================
make[1]: 离开目录“/opt/apps/vasp.6.6.0/testsuite”

最终耗时约2h，全部测试通过
